Price:
6,390.00 ৳

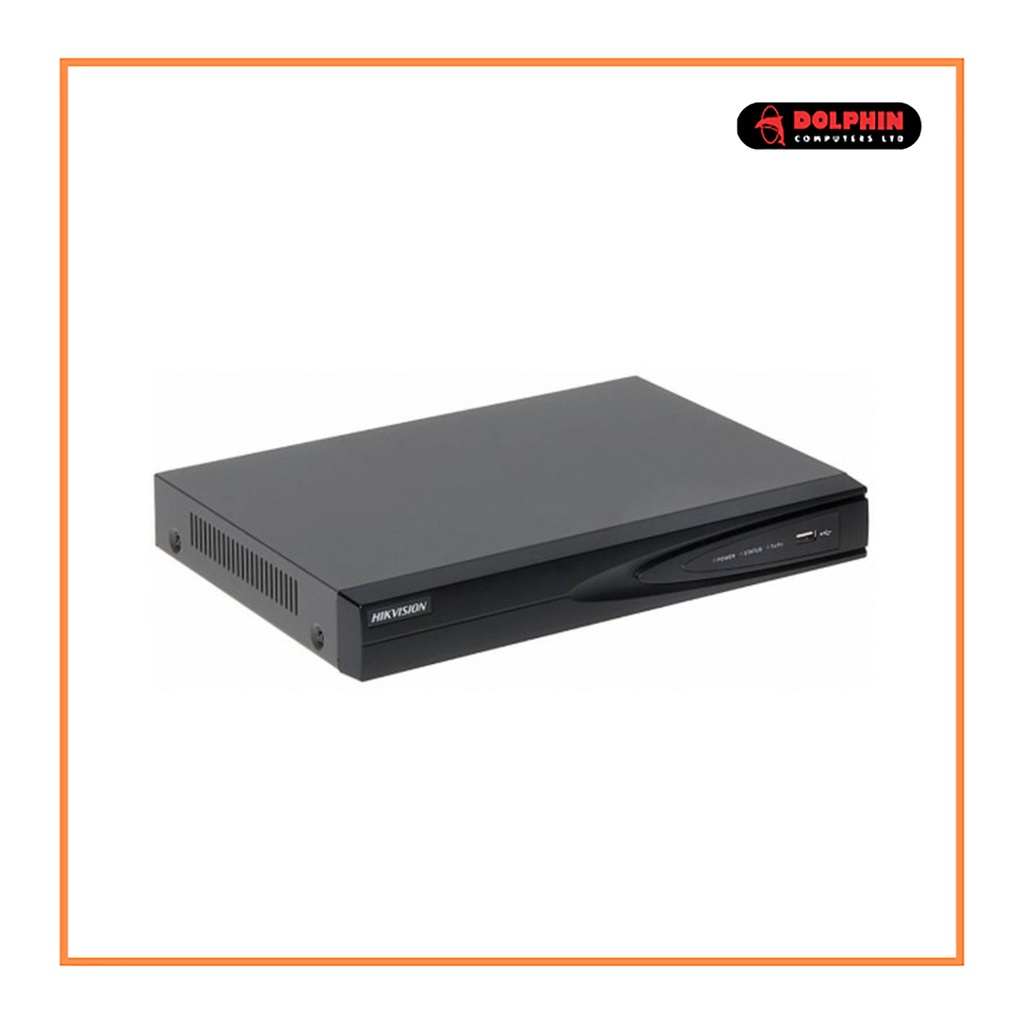

Hikvision DS-7604NI-K1 4 Channel Network Video Recorder
Key Features
Model: Hikvision DS-7604NI-K1
Up to 8MP resolution preview&playback
H.265/H.264/H.264+ video formats
Max 4 channel IP camera inputs
Max 40 Mbps incoming bandwidth
Tags :
Specification
System | |
| Main Processor | Dual-core embedded processor |
| Operating System | Dual-OS design to ensure high reliability of system running |
Audio and Video | |
| IP Camera Input | 4 Channel |
| Two-Way Talk | 1 Channel Input, 1 Channel Output, RCA |
Display | |
| Interface | 1 HDMI, 1 VGA |
| Resolution | HDMI: 1920×1080, 1280×1024, 1280×720, 1024×768 VGA: 1920×1080, 1280×1024, 1280×720, 1024×768 |
| Decoding Capacity | 4-ch @ 1080p |
| Multi-Screen Display | 2 |
Recording | |
| Compression | H.265/H.264/H.264+ |
| Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CI F/CIF/QCIF |
| Record Rate | 40Mbps |
Video Detection And Alarm | |
| Alarm Input | Yes |
Playback And Backup | |
| Playback Function | live view, storage, and playback |
| Backup Mode | USB Device/Network |
Network | |
| Interface | 1 RJ-45 10 M/100 Mbps self-adaptive Ethernet interface face 2 × USB 2.0 |
| Ethernet Port | 1 RJ-45 10 M/100 Mbps self-adaptive Ethernet interface |
| PoE | N/A |
| Network Function | TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Optical Fiber Interface | N/A |
Storage | |
| Internal HDD | 1 SATA interface for 1HDD Capacity Up to 6TB capacity for each disk |
| HDD Mode | Single |
| eSATA | 1 SATA interface connectable for recording and backup |
Auxiliary Interface | |
| USB | 2 × USB 2.0 |
| RS232 | N/A |
| RS485 | N/A |
Power | |
| Power Supply | 12 VDC |
| Power Consumption | ≤ 10 W |
Component Environment | |
| Operational Conditions | -10 to +55° C (14 to 131° F) Working humidity: 10 to 90 % |
Construction | |
| Dimensions | 260 × 225 × 48 mm (10.2" × 8.9" × 1.9") |
| Gross Weight | ≤ 1 kg (2.2 lb) |
Description
Hikvision DS-7604NI-K1 4 Channel Network Video Recorder (NVR)
Dual-OS design to ensure high reliability of system running. ANR technology to enhance the storage reliability when the network is disconnected. H.265/H.264/H.264+ video formats, Connectable to the third-party network cameras, 4 IP cameras can be connected, Recording at up to 8 MP resolution, Supports live view, storage, and playback of the connected camera at up to 8 MP resolution. HDMI/VGA outputs provided, HDMI Video output at up to 4K (3840 × 2160) resolution. SATA interface connectable for recording and backup, Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format. self-adaptive 10M/100Mbps network interface, Various Applications Centralized management of IP cameras, including configuration, information import/export, real-time information, display, two-way audio, upgrade, etc. Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized. VCA detection alarm is supported, Instant playback for assigned channel during multi-channel display mode, Smart search for the selected area in the video; and smart playback to improve the playback efficiency.
Warranty: 1 Year Warranty
